SOLD | Citroen Relay | 2024 | 40,000 miles

Photo Gallery

Van Specifications

Arrange your viewing by calling us on: 07772620110

Mail

The Specifics

Vehicle specifics:

Registration: YB24 WDM
Citroen Relay, 2024
High top, long wheel base (L3 H2)
Fuel type: Diesel
Engine size: 2.2 Litre
Horsepower: 140
Mileage: 40,000 miles
MPG combined: 35mpg
Euro 6 Engine
Ad Blue Engine
Gears: 6
Engine Condition: Excellent
Body work condition: Excellent
Mot due: First MOT due May 2027
Newly serviced, with oil change and filter change

For a more comfortable drive:

VOX Reversing camera (removable)
Reversing sensor
Sat Nav
Cruise control
Air con
Climate control
Touch screen console

Right hand side of the van, showing flawless finish and great body work

Leave nothing behind, Eva has room for everything you could possibly need on your holiday. Some of our previous customers have even bought one of our campers to serve as their new home and have never had a problem with space!

Large L shaped kitchen units with a massive amount of storage space
2 x large wall units (perfect for storing clothes away from food items)
The larger of the two seats opens into a storage chest
Another cupboard under the table, this cabinet has a removable back (which could be used to create the perfect pet area into the boot, giving your furry friend extra space or, alternatively, for storage of longer objects like surfboards or kayaks)
There’s also even more storage above the cab area (we use this to store extra bedding, big coats etc in our camper)

open upper unit showing huge amounts of storage space

Large L shaped kitchen (with a massive amount of storage space)
Large bespoke units and doors
Quartz worktop and splash back (hardest wearing worktop on the market)
SIA 2 ring gas hob, gas certified
Maxx air fan (with climate control and remote located above the hob, perfect to extract cooking smells)
3.9kg gas bottle (in purpose built locker, doubling as a third seat)

Whilst hooked up, a 2 double socket where you could plug in your airfryer, toaster or coffee machine etc.
400mm x 400mm stainless steel sink
Brushed steel hot and cold tap
45L Alpicool fridge (with LG compression making this fridge one of the most energy efficient on the market)
Pull out oak table with even more storage cupboards underneath
5kw LF Bros diesel heater with independent fuel tank in the boot area (remote controlled, only uses 0.1 L per hour of fuel and fully warms the van in under 15 minutes)

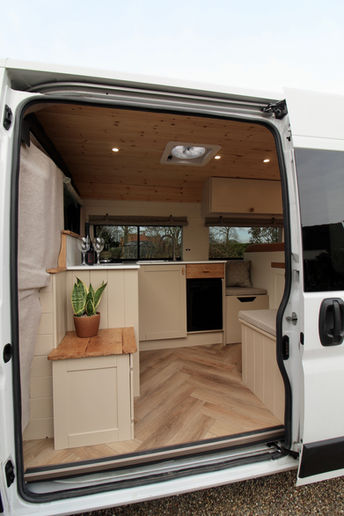

view taken facing the bespoke units as if you are sat down at the table seat

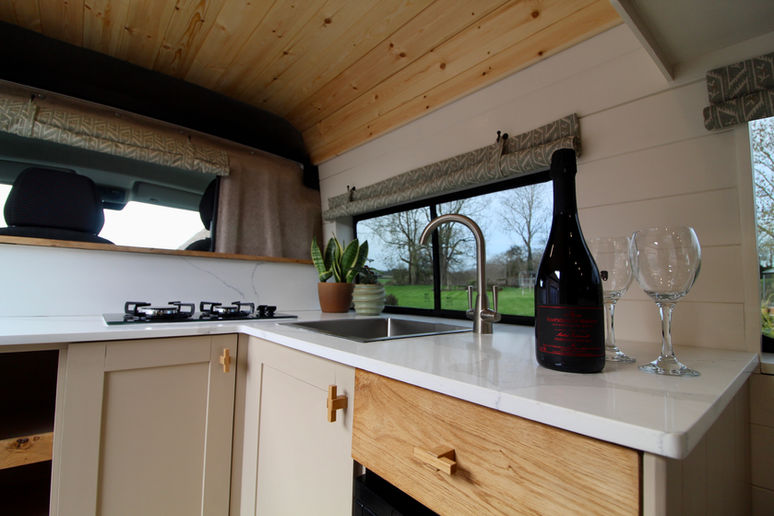

a full view of the bespoke units with luxury quartz worktops

The boot area has been designed to be able to fit multiple bikes and has masses of room for all your needs. It is easily cleaned due to the luxury laminate flooring, making muddy bikes or boots no problem. It also has a divider to keep your stored items away from the electrics but with easy access to both fuse boxes, leisure batteries, diesel tank and heater.

It has its own independent light source and a removable back to the under bed cabinet (for storage of longer objects like surfboards or kayaks or to give your pets full roam of the van.

back doors are open showing a cosy bed with lots of storage space in the boot area, all electricals are covered up neatly

280ah “Eco Worthy” lithium battery
“Eco Worthy” Bluetooth connectivity between your phone and campervan batteries keeping you up to date with your campers battery life
1x 12v socket
2x USB sockets (next to table and bed)
2x 12v dimmable giraffe necked reading lights with USB ports (so lots of places to charge your phones!)
6 LED warm coloured lights with dimmer switch
400w solar panel (which can keep the camper running completely off grid)
MPPT solar controller (controls the solar panels and easily creates enough electric to run all appliances without needing to charge the batteries, making this van the perfect off grid camper)
12v fuse box (all appliances clearly labelled)
240v fuse box
240 V Electric hook up mounted on the outside
240v smart battery charger (this will protect your batteries and increase their life)
20amp DC to DC charger (this charges the leisure batteries whilst the engine is running)
2000w pure sine wave inverter, running two extension leads in the living area, for a total of 4 x 240v sockets. (These are available to use fully off the grid. There’s an extra control panel making it easy to turn off and on to save energy, making it perfect for using normal appliances such as your air fryer, hair dryer or laptop chargers.)
Whilst on electric hook up, you can power 3 x 240 V sockets. There's one socket in the boot area and 2 double sockets, one near the table which is perfect for laptop chargers or hair dryers and another in the kitchen where you could plug in your airfryer or coffee machine etc.

A mixture of hard and soft insulation (keeping the van at the perfect temperature at anytime of the year)
Thermal bubble foil insulation (to reduce solar gain and heat loss)
Foil vapour barrier (to reduce moisture)
Carpet (to reduce thermal bridging and increase sound insulation)
The walls and ceiling are pine tongue and groove. Walls are painted in Farrow & Ball “Old School White” and the units with “London Stone”. The ceiling is treated with Danish oil.
The floor is hard wood ply, covered with Howdens luxury flooring (easy to clean and sound deadening)
Natural solid oak shelving and table
5 windows (1 opening nearest cooker) 80% tint

showcasing our conversion in process filled with lots of recycled insulation

Eva has an integrated hot water system which uses our newly designed automatic 18 litre solar heating immersion heater. It's thermostatically controlled and uses excess power from your solar panels to heat your water. Perfect for off grid living!

A collapsible internal shower and basin. The perfect compromise between space and functionality. It hooks under the fan to extract any excess moisture.
Portable USB rechargeable shower pump.
Pop up shower tent and 7L pressure shower unit for private outdoor showering if preferred or rinsing off dogs, bikes, walking boots etc outside of the van.
2 x 10L removable fresh water tank with space to add additional fresh water if needed.
20L foldable bucket for water transportation or shower water supply.
External waste pipe (to reduce weight and fuel consumption)
External water filling point (for the hot water tank)
Thetford toilet (which pulls out from under the smaller seat)
Whale water pump for cold water (easy to clean and use)
Sureflo Water pump for hot water

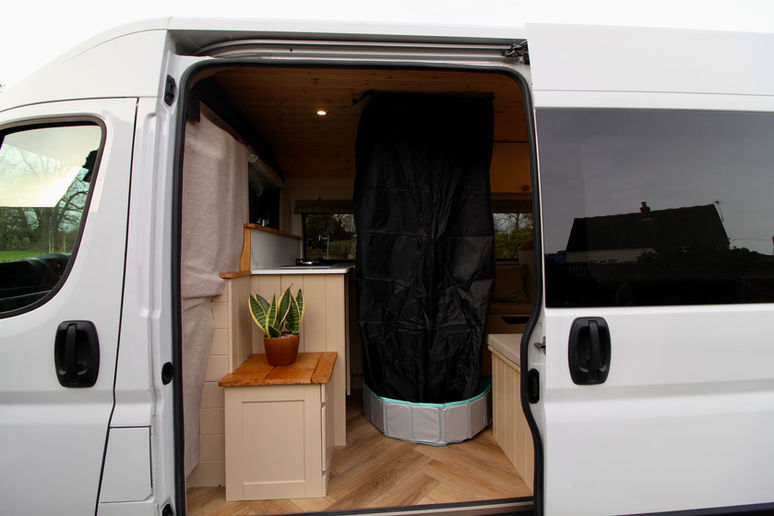

how the shower works, neatly velcro to the hooks, pool ready at the foot, under the fan for ventilation

the thetford toilet is stored neatly and is easily accessed under the smaller table seat

Professionally converted Citroën Relay campervan expertly built by Cannon Conversions. Designed for couples, with a fixed double bed, diesel heating, full off-grid electrical system, solar, hot water, removable internal shower, and premium finish throughout. Our campers are built with the capability of both total off grid travel or campsite touring.

You can expect the highest of standards as we have over 20 conversions worth of experience.

Premium, high spec devices and products used throughout
3 Month Warranty on both the vehicle and conversion.

Paperwork & Peace of Mind:

◦ Appliance Manuals included along with a full manual tailored to your camper which explains each section of the conversion and tips and tricks for easy use.

◦ Electrical & Gas certified and documentation included.◦ 3 month-warranty on both the vehicle and conversion.

◦ The Unladen Weight on this particular vehicle has not been verified but we guarantee that there is an approximate 500KG payload due to past conversions achieving similar results.

Handmade blinds covering all windows (including a matching magnetic one for the sliding door)
Custom seat cushions covered in a super soft and durable cotton
2 small cushions in the same print as the curtain fabric

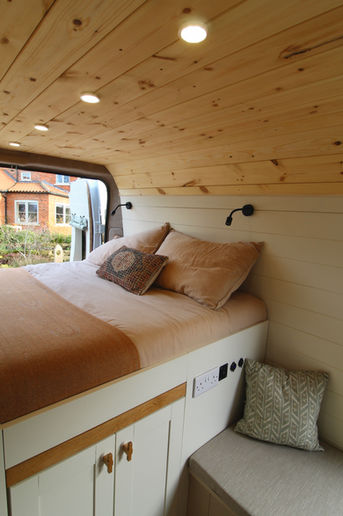

Very comfy memory foam mattress. Standard double width. The length of one side of the bed is reduced in size, measuring 1.8m and the other is a standard double length (1.9m) due to the extra space created by the window.
In addition, we can create a small removable single/child's bed between the two seats measuring approximately 1.8m by 0.5m. (We can discuss this optional add-on at your viewing.)

For Eva, we have opted for a beautiful cotton-linen blend called "Meadow Path" in the colour "Duck Egg" for the curtains and a durable Dove Northleach Fabric for the seat cushions.

an example of the type of smaller bed we could create between the two existing seat cushions
